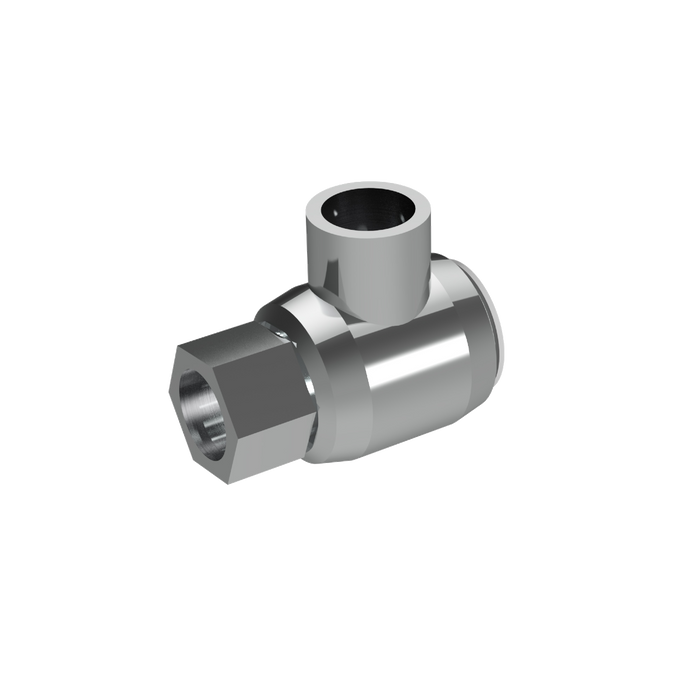

Swivel connectors of the G2 KR type are often used on jetting unit hose reels. They are balanced and therefore very low torque. The swivel is provided with two double seals, which means that the coupling is tight under pressure as well as without pressure.
Technical data:
• Hard-chromed shaft
• Yellow chromate steel
• Pressure balanced
• Shoulder and body have fixed internal threads
• Temperature range -40 °C – +80 °C
| Article Number |
|
|
|
|---|---|---|---|
| 4-80100050 | 1/2″ | 3.08" | 5000 PSI |
| 4-80100075 | 3/4″ | 3.41" | 5000 PSI |
| 4-80100100 | 1″ | 4.87 " | 5000 PSI |
| 4-80100125 | 1 1/4″ | 4.99" | 5000 PSI |
| 4-80100150 | 1 1/2″ | 6.10" | 5000 PSI |
| 4-80100200 | 2″ | 7.13" | 4061 PSI |
