POLYFLEX is a push hose with good abrasion resistance and small bend radius, witch makes it very flexible.
Advantages:
• Good abrasion resistance.
• Small bend radius.
• Very flexible.

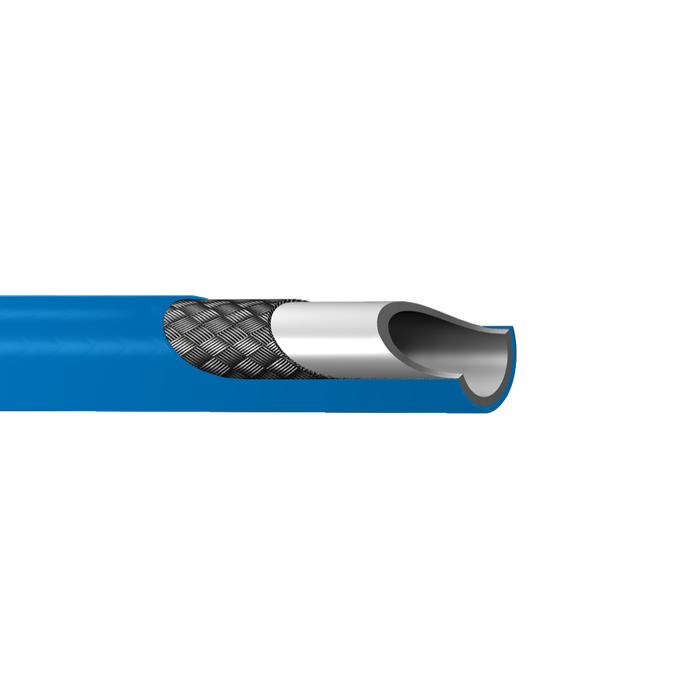

Technical description:
• Inner tube: Polyester.
• Reinforcement: 1 layer of steel braid.
• Cover: Polyurethane.
• Temperature range: -40°C till +100°C.
| Article Number |
|
|
|
|
|---|---|---|---|---|
| 5-2603-015 | M6 M / 1/4" F | 30 mm | 3,2 mm (1/8") | 7,0 mm |
| 5-2603-020 | M6 M / 1/4" F | 30 mm | 3,2 mm (1/8") | 7,0 mm |
| 5-2603-025 | M6 M / 1/4" F | 30 mm | 3,2 mm (1/8") | 7,0 mm |
| 5-2603-030 | M6 M / 1/4" F | 30 mm | 3,2 mm (1/8") | 7,0 mm |
| 5-2605-10 | 1/8" | 30 mm | 4,7 mm (3/16") | 9,8 mm |
| 5-2605-15 | 1/8" | 30 mm | 4,7 mm (3/16") | 9,8 mm |
| 5-2605-20 | 1/8" | 30 mm | 4,7 mm (3/16") | 9,8 mm |
| 5-2605-25 | 1/8" | 30 mm | 4,7 mm (3/16") | 9,8 mm |
| 5-2605-30 | 1/8" | 30 mm | 4,7 mm (3/16") | 9,8 mm |
| 5-2605-35 | 1/8" | 30 mm | 4,7 mm (3/16") | 9,8 mm |
| 5-2605-40 | 1/8" | 30 mm | 4,7 mm (3/16") | 9,8 mm |
| 5-2605-50 | 1/8" | 30 mm | 4,7 mm (3/16") | 9,8 mm |
| 5-2605-100 | 1/8" | 30 mm | 4,7 mm (3/16") | 9,8 mm |
| 5-2605-120 | 1/8" | 30 mm | 4,7 mm (3/16") | 9,8 mm |
| 5-2606-20 | 1/4" | 40 mm | 6,3 mm (1/4) | 11,9 mm |
| 5-2606-25 | 1/4" | 40 mm | 6,3 mm (1/4) | 11,9 mm |
| 5-2606-30 | 1/4" | 40 mm | 6,3 mm (1/4) | 11,9 mm |
| 5-2606-35 | 1/4" | 40 mm | 6,3 mm (1/4) | 11,9 mm |
| 5-2606-40 | 1/4" | 40 mm | 6,3 mm (1/4) | 11,9 mm |
| 5-2606-50 | 1/4" | 40 mm | 6,3 mm (1/4) | 11,9 mm |
| 5-2606-80 | 1/4" | 40 mm | 6,3 mm (1/4) | 11,9 mm |
| 5-2606-100 | 1/4" | 40 mm | 6,3 mm (1/4) | 11,9 mm |
| 5-2606-140 | 1/4" | 40 mm | 6,3 mm (1/4) | 11,9 mm |
| 5-2610-025 | 3/8" |
