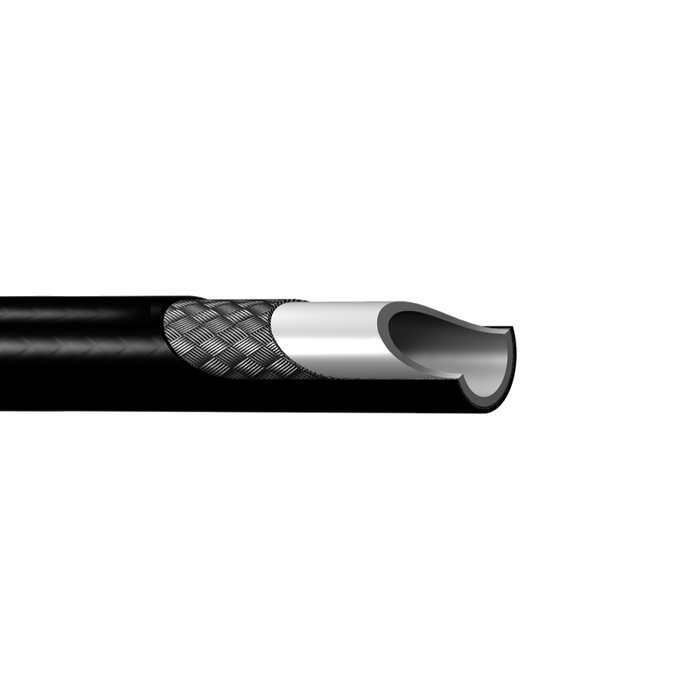

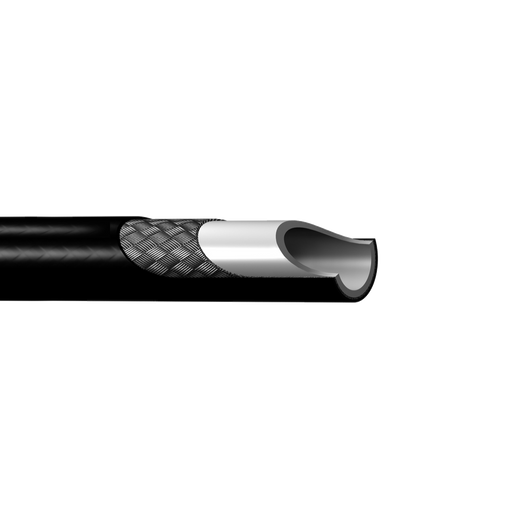

Parker Polyflex is a push hose with good abrasion resistance and small bend radius, witch makes it very flexible.
Advantages:
• Good abrasion resistance.
• Small bend radie.
• Very flexible.
Technical description:
• Inner tube: Polyester.
• Reinforcement: 1 layer of steel braid.
• Cover: Polyurethane.
• Temperature range: -40°C - +50°C.
| Article Number |
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|
| 5-2703-10 | M6 | 30 mm | 3,2 mm (1/8") | 7 mm | 0,07 kg/m (0,7 kg) | 340 bar (5000 PSI) | -40°F to 122°F |
| 5-2703-15 | M6 | 30 mm | 3,2 mm (1/8") | 7 mm | 0,07 kg/m (1,05 kg) | 340 bar (5000 PSI) | -40°F to 122°F |
| 5-2703-20 | M6 | 30 mm | 3,2 mm (1/8") | 7 mm | 0,07 kg/m (1,4 kg) | 340 bar (5000 PSI) | -40°F to 122°F |
| 5-2703-25 | M6 | 30 mm | 3,2 mm (1/8") | 7 mm | 0,07 kg/m (1,75 kg) | 340 bar (5000 PSI) | -40°F to 122°F |
| 5-2703-30 | M6 | 30 mm | 3,2 mm (1/8") | 7 mm | 0,07 kg/m (2,1 kg) | 340 bar (5000 PSI) | -40°F to 122°F |
| 5-2705-10 | 1/8″ | 30 mm | 4,7 mm (1/8″) | 9,8 mm | 0,12 kg / m (1,2 kg) | 340 bar (5000 PSI) | -40°F to 122°F |
| 5-2705-15 | 1/8″ | 30 mm | 4,7 mm (1/8″) | 9,8 mm | 0,12 kg / m (1,8 kg) | 340 bar (5000 PSI) | -40°F to 122°F |
| 5-2705-20 | 1/8″ | 30 mm | 4,7 mm (1/8″) | 9,8 mm | 0,12 kg / m (2,4 kg) | 340 bar (5000 PSI) | -40°F to 122°F |
| 5-2705-25 | 1/8″ | 30 mm | 4,7 mm (1/8″) | 9,8 mm | 0,12 kg / m (3 kg) | 340 bar (5000 PSI) | -40°F to 122°F |
| 5-2705-30 | 1/8″ | 30 mm | 4,7 mm (1/8″) | 9,8 mm | 0,12 kg / m (3,6 kg) | 340 bar (5000 PSI) | -40°F to 122°F |
| 5-2705-40 | 1/8″ | 30 mm | 4,7 mm (1/8″) | 9,8 mm | 0,12 kg / m (4,8 kg) | 340 bar (5000 PSI) | -40°F to 122°F |
| 5-2705-50 | 1/8″ | 30 mm | 4,7 mm (1/8″) | 9,8 mm | 0,12 kg / m (6 kg) | 340 bar (5000 PSI) | -40°F to 122°F |
| 5-2705-100 | 1/8" | 30 mm | 4,7 mm (1/8″) | 9,8 mm | 0,12 kg / m (12 kg) | 340 bar (5000 PSI) | -40°F to 122°F |
| 5-2706-35 | 1/8″ | 30 mm | 4,7 mm (1/8″) | 9,8 mm | 0,12 kg / m (4,2 kg) | 340 bar (5000 PSI) | -40°F to 122°F |
| 5-2705-120 | 1/8" | 30 mm | 4,7 mm (1/8″) | 9,8 mm | 0,12 kg / m (14,4 kg) | 340 bar (5000 PSI) | -40°F to 122°F |
| 5-2705-150 | 1/8" | 30 mm | 4,7 mm (1/8″) | 9,8 mm | 0,12 kg / m (18 kg) | 340 bar (5000 PSI) | -40°F to 122°F |
| 5-2706-10 | 1/4" | 40 mm | 6.3 mm (1/4") | 11.9 mm | 0,12 kg / m (1,2 kg) | 310 bar (4500 PSI) | -40°F to 122°F |
| 5-2706-15 | 1/4" | 40 mm | 6.3 mm (1/4") | 11.9 mm | 0,12 kg / m (1,8 kg) | 310 bar (4500 PSI) | -40°F to 122°F |
| 5-2706-20 | 1/4" | 40 mm | 6.3 mm (1/4") | 11.9 mm | 0,12 kg / m (2,4 kg) | 310 bar (4500 PSI) | -40°F to 122°F |
| 5-2706-25 | 1/4" | 40 mm | 6.3 mm (1/4") | 11.9 mm | 0,12 kg / m (3 kg) | 310 bar (4500 PSI) | -40°F to 122°F |
| 5-2706-30 | 1/4" | 40 mm | 6.3 mm (1/4") | 11.9 mm | 0,12 kg / m (3,6 kg) | 310 bar (4500 PSI) | -40°F to 122°F |
| 5-2706-40 | 1/4" | 40 mm | 6.3 mm (1/4") | 11.9 mm | 0,12 kg / m (4,8 kg) | 310 bar (4500 PSI) | -40°F to 122°F |
| 5-2706-50 | 1/4" | 40 mm | 6.3 mm (1/4") | 11.9 mm | 0,12 kg / m (6 kg) | 310 bar (4500 PSI) | -40°F to 122°F |
| 5-2706-100 | 1/4" | 40 mm | 6.3 mm (1/4") | 11.9 mm | 0,12 kg / m (12 kg) | 310 bar (4500 PSI) | -40°F to 122°F |
| 5-2710-25 | 3/8" | 60 mm | 9,7 mm (3/8") | 15,9 mm | 0,26 kg / m (6,5 kg) | 240 bar (3480 PSI) | -40°F to 122°F |
| 5-2710-30 | 3/8" | 60 mm | 9,7 mm (3/8") | 15,9 mm | 0,26 kg / m (7,8 kg) | 240 bar (3480 PSI) | -40°F to 122°F |
| 5-2710-40 | 3/8" | 60 mm | 9,7 mm (3/8") | 15,9 mm | 0,26 kg / m (10,4 kg) | 240 bar (3480 PSI) | -40°F to 122°F |
| 5-2710-50 | 3/8" | 60 mm | 9,7 mm (3/8") | 15,9 mm | 0,26 kg / m (13 kg) | 240 bar (3480 PSI) | -40°F to 122°F |
